BAUER
BG 28
KellyLine rotary drilling rig on the BT 70 carrier with 280 kNm torque and drilling depth up to 77 m.
- Base carrier
- BT 70
- Maximum drilling diameter
- 2,500 mm
- Maximum drilling depth
- 77.0 m
- Maximum height
- 25.1 m
Partner Manufacturer
BAUER Maschinen GmbH
Equipment and methods for specialist foundation engineering
Schrobenhausen, Germany
Founded Group history since 1790; equipment manufacturing since 1969
Germany
Company Overview
BAUER Maschinen GmbH is one of the world's leading German engineering companies specializing in foundation engineering equipment. BAUER develops machinery for complex civil engineering and infrastructure projects, including piling rigs, drilling rigs, diaphragm wall equipment, trench cutters, and deep-foundation technologies used in the construction of bridges, tunnels, ports, skyscrapers, dams, railways and other major works.
Company History
The BAUER Group traces its origins to a copper-smith workshop founded in 1790 in Schrobenhausen, Bavaria. The company moved into specialist foundation engineering in the twentieth century and began building its own foundation equipment from 1969. In 2001 machine manufacturing was separated into BAUER Maschinen GmbH, alongside the construction business BAUER Spezialtiefbau GmbH, with BAUER AG as the group holding company.
Areas of Expertise
- Rotary and Kelly drilling rigs
- Diaphragm wall equipment and trench cutters
- Cased secant pile technology
- Cutter Soil Mixing (CSM)
- Deep foundation and ground improvement
- Anchor and micropile drilling
Industries Served
- Bridges and tunnels
- Ports and marine works
- High-rise foundations
- Dams and hydro-engineering
- Railway and metro infrastructure
- Environmental containment
Product Categories
Rotary Drilling Rigs
Kelly and continuous flight auger rigs for bored piles up to large diameters and depths.
Diaphragm Wall Equipment
Hydraulic grabs and trench cutters for retaining walls and cut-off walls.
Trench Cutters (BC / MBC)
Cutters for hard soils and rock, delivering precision and productivity in deep excavations.
Ground Improvement
CSM, mixed-in-place and jet grouting equipment for treating weak soils.
Technology & Innovation
BAUER Maschinen is recognized for continuous engineering innovation, digital assistance systems, integrated data logging, and machines engineered for extreme depths, hard rock and confined urban sites. Decades of collaboration with BAUER's own construction operations feed real-site experience directly back into the machine designs.
Equipment Catalog
BAUER machinery lines
45 models across 9 categories. Illustrative specs — confirm with RENTEK.
Rotary Drilling Rigs
H- and V-kinematics BG series for bored piles, kelly, CFA and FDP drilling — plus all-electric eBG.
BAUER
BG 30 H
Multifunction rotary drilling rig on the BT 75 carrier for Kelly, CFA, FDP and other foundation methods.
- Base carrier
- BT 75
- Maximum drilling diameter
- 2,500 mm
- Maximum drilling depth
- 64.7 m
- Maximum height
- 25.5 m
BAUER
BG 36 H
BAUER BG 36 large kelly drilling rig on the BS 95 base carrier — the current official configuration behind the BG 36 H route.
- Class
- Large rotary kelly drilling rig
- Base carrier
- BAUER BS 95
- Method
- Kelly drilling (cased and uncased)
- Crowd system
- BAUER Crowd Plus
BAUER
BG 55
BAUER's flagship BG 55 V-kinematics rotary drilling rig on the BS 115 base carrier — the largest in the current BG lineup.
- Class
- Flagship rotary drilling rig
- Base carrier
- BAUER BS 115
- Kinematics
- V-kinematics
- Method
- Kelly drilling (cased and uncased)
BAUER
eBG 33 H — all-electric
All-electric H-kinematics rotary drilling rig from the BAUER eBG line — cable-bound electric drive for zero-local-emission specialist-foundation work.
- Class
- All-electric rotary drilling rig
- Kinematics
- H-kinematics
- Line
- BAUER eBG electric-drive rigs
- Power supply
- Cable-bound external electric supply
BAUER
eBG 33 Electric Drive
Battery/electric-drive V-kinematics rotary drilling rig from the BAUER eBG line for low-emission specialist-foundation work.
- Class
- Electric-drive rotary drilling rig
- Kinematics
- V-kinematics
- Line
- BAUER eBG electric-drive rigs
- Sibling
- eBG 33 H
KellyLine Compact Rigs
Compact Kelly drilling rigs for smaller-diameter piles and foundation work in confined or urban sites.
BAUER
KellyLine Series Model family
Family page for BAUER KellyLine — compact kelly drilling rigs for smaller-diameter piles and confined jobsites. Individual model specs live on each model page.
- Class
- Compact kelly-drilling rig family
- Method
- Kelly drilling
RB Mobile Drilling Rigs
GEFCO-brand rigs for water well, geothermal and exploration drilling.
BAUER
RB-T Series
Family page for BAUER RB-T truck-mounted mobile drilling rigs — water-well, geothermal and exploration drilling. Individual model specs live on each model page.
- Class
- Truck-mounted mobile drilling rig family
- Members
- RB-T 100/135, RB-T 135 and related
- Typical uses
- Water wells, geothermal, exploration
BAUER
RB 65
BAUER RB 65 — mobile multipurpose drilling rig for water wells, geothermal and exploration drilling.
- Class
- Mobile multipurpose drilling rig (RB line)
- Typical methods
- Rotary, DTH and related
- Applications
- Water wells, geothermal, exploration
BAUER
RB-T 100/135
Dual-rated variant from the BAUER RB-T family — the same platform configured under either the 100 or 135 rating for water-well, geothermal and exploration work.
- Class
- Truck-mounted drilling rig (RB-T family)
- Rating
- Dual-rated: 100 / 135
- Current single-rated model
- RB-T 135
- Typical uses
- Water wells, geothermal, exploration
BAUER
RB-T 135
BAUER RB-T 135 — current single-rated truck-mounted drilling rig from the RB-T family for water-well, geothermal and exploration work.
- Class
- Truck-mounted drilling rig (RB-T)
- Status
- Current single-rated RB-T model
- Chassis
- Truck-mounted
- Typical uses
- Water wells, geothermal, exploration
BCS Cutter & Soil Mixing Systems
Trench cutters and electrified mixing systems for diaphragm walls in hard soils and rock.
BAUER
BCS 185 Power Pack
Modular power pack for BAUER cutter systems with a choice of electric or diesel drive for diaphragm-wall and trench-cutter work.
- Class
- Cutter-system power pack
- Drive options
- Electric or diesel
- Function
- Hydraulic + electrical supply to BAUER cutter systems
BAUER
eCSM (electric Cutter Soil Mixing) — prototype
Prototype electrified Cutter Soil Mixing (CSM) technology — twin electric motors on a BAUER cutter head. Not a series product.
- Status
- Prototype (Bauma 2025)
- Technology
- Electrified Cutter Soil Mixing (CSM)
- Drive
- Twin electric motors on the CSM cutter head
- Production status
- Not confirmed as a series product
KLEMM Anchor Drilling Rigs
KR series for anchor drilling, high-pressure injection and geothermal.
BAUER
KR 806-3GS
Universal and anchor drilling rig from KLEMM Bohrtechnik (BAUER Group) for specialised foundation engineering, optimised for anchor drilling in low, inclined and constrained positions.
- Product class
- Universal & anchor drilling rig
- Manufacturer
- KLEMM Bohrtechnik (BAUER Group)
- Emission stage
- EU Stage V / EPA Tier 4 final
- Engine
- Volvo Penta TAD 583VE
BAUER
KR 806-4GM
KLEMM KR 806-4GM anchor drilling rig — KR 806-class carrier with an on-board rod magazine for anchor and micropile work.
- Class
- Anchor drilling rig (KLEMM KR 806)
- Base
- KR 806-3GS carrier concept
- Distinctive feature
- On-board rod magazine (carousel)
- Primary methods
- Ground anchors, soil nailing, micropiles
RTG Rammtechnik Piling
Pile driving, pressing and deep soil mixing equipment.
BAUER
RG Piling Rigs Model family
Family page for RTG RG piling rigs — leaders for driven and vibratory pile installation. Individual model specs live on each model page.
- Class
- Piling-leader rig family (RTG)
- Members
- RG 19 T, RG 21 T, RG 25 S, RG 27 S and related
- Methods
- Driven piling, vibratory piling, sheet piling
BAUER
eRG 21 T — hybrid
Hybrid telescopic-leader pile driver, 26.8 m mast and 88 kW e-motor.
- Base carrier
- UW 70 R telescopic undercarriage
- Diesel engine
- CAT C13 · 430 kW (Tier 4 final / Stage V) with DPF + AdBlue
- Electric motor
- 88 kW · CCR plug 125 A / 400 V AC
- Max mast height (extended)
- 26.8 m
BAUER
RTG MPZ 700-800 Sheet-Pile Press System
Leader-mounted static sheet-pile press for Z-profiles 700-800 mm. 4 × 800 kN pressing force, 850 l/min oil flow, feed 9.4 / 12 m/min. Modular design with ACS quick-coupling and wireless remote control.
- Profile range
- Z-profiles 700-800 mm section width
- Pressing force
- 4 × 800 kN
- Extraction force
- 4 × 600 kN
- Hydraulic oil flow
- 850 L/min
BAUER
RTG MSM Multi-Shaft Mixing System System
Column Mixing Drive (CMD-65) attachment with two, three or four independent rotary drives for deep soil mixing cut-off walls. Runs on any RTG piling rig from RG 16 T upwards; standard 914 mm mixing tool.
- Compatible carriers
- RG 16 T through RG 27 S (max. mixing depth 14.5-25.3 m)
- Drive versions
- CMD-65/4 quadruple, CMD-65/3 triple, CMD-65/2 double
- Max. torque (1st gear)
- 65.2 kN·m
- Max. speed (1st gear)
- 16 rpm (quad) / 22 rpm (triple) / 26 rpm (double)
BAUER
RG 19 T
Diesel pile driver with telescopic leader on BS 65 carrier.
- Base carrier
- BS 65 · UW 70 R
- Engine
- CAT C18 (Tier 4 final / Stage V)
- System power
- 563 kW
- Max mast height (extended)
- 23.9 m
BAUER
RG 21 T
Top-of-range telescopic-leader piling rig from RTG Rammtechnik. CAT C18 delivers 563 kW; pile lengths up to 21.4 m with a vibrator.
- Engine
- CAT C18 · 563 kW @ 1,800 rpm (Stage V)
- Max mast height
- 26.8 m (extended)
- Mast length (retracted)
- 14.0 m
- Max pile length
- 21.4 m (with vibrator)
BAUER
RG 22 S
Diesel pile driver with fixed leader and 400 kN sledge force.
- Base carrier
- UW 75 R telescopic undercarriage
- Engine
- CAT C18 (Tier 4 final / Stage V) with oxidation catalyst
- System power
- 576 kW
- Max mast height (with kelly + winch)
- 28.8 m
BAUER
RG 27 S
RTG's most powerful fixed-leader pile driver: effective leader length up to 27.0 m, MR 150 AVM vibrator and 597 kW power; CSM soil-mixing depth up to 30.5 m.
- Class
- Fixed-leader pile driver / multifunctional piling rig
- Manufacturer
- RTG Rammtechnik (BAUER Group)
- Max piling-material length / effective leader length
- up to 27.0 m
- Max vibrator size
- MR 150 AVM
BAUER

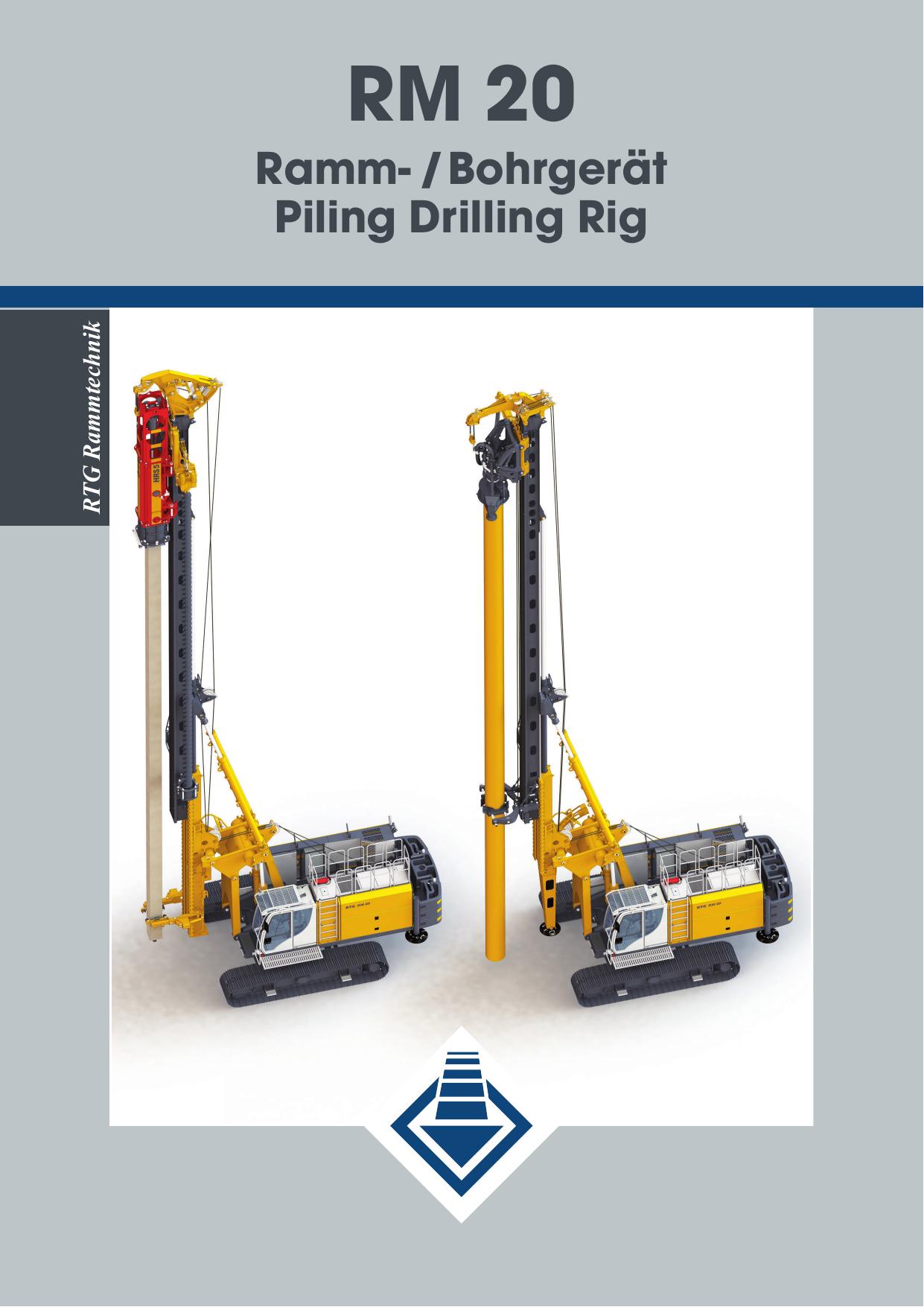

RM 20
Combined piling and drilling rig on BT 55 S carrier.
- Base carrier
- BT 55 S
- Engine (standard)
- Cummins QSB 6.7 · 201 kW @ 2 000 rpm (Stage III A)
- Engine (optional)
- Cummins B 6.7 Stage V · 209 kW @ 2 000 rpm
- Total height
- 25.7 m
BAUER
RTG GGZ Track Piler System
Rail-borne fixed-leader piling rig developed with TECHNE for track-side foundation works. 23 m mast, 13 m sledge stroke, 8.5 m radius, 400 kN crowd force. Accepts Kelly drilling, sheet-pile vibrator and MPZ 700 sheet-pile press attachments.
- Max. mast height (with mast head)
- approx. 23 m
- Min. mast height (displacement cyl. retracted)
- approx. 16 m
- Sledge stroke
- approx. 13 m
- Max. working radius
- 8.5 m
BAUER
eRG 19 T — hybrid
Diesel-electric hybrid pile driver with 125 A / 400 V grid input.
- Base carrier
- BS 61 eh · UW 70 R
- Diesel engine
- CAT C13 (Tier 4 final / Stage V) with DPF + AdBlue
- Electric motor
- On-board · CCR plug 125 A / 400 V AC
- System power
- 510 kW
BAUER
eRG 22 S — hybrid
Hybrid fixed-leader pile driver with 400 kN sledge and grid input.
- Base carrier
- UW 75 R telescopic undercarriage
- Diesel engine
- CAT C13 (Tier 4 final / Stage V) with DPF + AdBlue
- Electric motor
- On-board · CCR plug 125 A / 400 V AC
- System power
- 510 kW
BAUER MAT Slurry Systems
Slurry handling, mixing, separation and injection systems.
BAUER
MAT Mixing & Separation Plants
BAUER MAT mixing and separation plants — bentonite / cement mixing and desanding/decanting units for foundation slurry management.
- Scope
- Mixing + separation subset of MAT portfolio
- Includes
- Batch mixing (CMS), desanding (BE), decanters (BD)
BAUER
BE 100 Desanding Plant System
Compact single-cyclone desanding plant for slurry-supported drilling, geothermal and small-site applications; 63 A CEE plug-and-play.
- Type
- Compact desanding plant
- Pump motor
- 15 kW
- Vibrator motor
- 2 × 1.15 kW
- Total installed load
- 17.3 kW
BAUER
CMS 50 Batch Mixing Plant System
Container-mounted 50 m³/h bentonite/cement batch mixing plant for special foundation, tunnelling and diaphragm-wall work.
- Type
- Container-mounted batch mixing plant
- Transport L × W × H
- 6,058 × 2,438 × 2,591 mm
- Transport weight (empty)
- 6,600 kg
- Plant power input
- 50 kW
BAUER
IPA 250-E Injection Plant System
Fully automatic colloidal grouting station: 250 l/min pump, 80 bar pressure, up to 10 stored recipes and MAT patented mixing.
- Type
- Fully automatic injection / grouting plant
- Max pump flow rate
- 250 L/min
- Max flow pressure
- 80 bar
- Mixer capacity
- 200 l
BAUER
BD 30-C Decanter Centrifuge
Compact BAUER MAT decanter centrifuge for slurry dewatering on smaller diaphragm-wall and drilling jobsites.
- Class
- Decanter centrifuge
- Line
- BAUER MAT slurry-treatment equipment
- Function
- Fine-solids separation from bentonite / polymer slurry
BAUER
MAT systems Model family
BAUER MAT systems — umbrella range for mixing, separation and pumping technology used across BAUER specialist-foundation methods.
- Scope
- Umbrella: mixing + separation + pumping
- Includes
- CMS mixing, BE desanding, BD decanters, MAT pumps
BAUER
BE 500
Long-standing BAUER MAT desanding plant used as a standard on major diaphragm-wall and tunnel slurry-treatment plants.
- Class
- Desanding plant (standard, high capacity)
- Line
- BAUER MAT slurry-treatment equipment
- Function
- Sand and coarse-solids separation from bentonite / polymer slurry
BAUER
BE 300-C
Container-framed BAUER MAT desanding plant sized to pair with a second cleaning stage in mid-capacity slurry-treatment lines.
- Class
- Desanding plant (mid capacity)
- Line
- BAUER MAT slurry-treatment equipment
- Frame
- Container-framed
- Downstream
- Sized to pair with a decanter or second cleaning stage
BAUER
BE 250-60
Compact BAUER MAT desanding plant with a longitudinally mounted sieve on the container roof for slurry cleaning on smaller jobsites.
- Class
- Desanding plant (compact)
- Line
- BAUER MAT slurry-treatment equipment
- Sieve arrangement
- Longitudinal on container roof
BAUER
BD 90-C
Larger BAUER MAT decanter centrifuge for slurry dewatering on major diaphragm-wall, cutter and drilling projects.
- Class
- Decanter centrifuge (large)
- Line
- BAUER MAT slurry-treatment equipment
- Function
- High-throughput fine-solids separation
BAUER
CMS 30
Compact BAUER MAT batch mixing plant for bentonite and cement suspensions on smaller specialist-foundation jobsites.
- Class
- Batch mixing plant (compact)
- Line
- BAUER MAT slurry / mixing equipment
- Function
- Bentonite and cement suspension batching
- Sibling
- Smaller than CMS 50
Duty-Cycle Cranes
BAUER MC-series duty-cycle cranes (MC 76, MC 86, MC 96 and MC 96 Electric Drive) as base carriers for diaphragm walls, cut-off walls and dynamic compaction.
BAUER
MC Duty-Cycle Cranes
Family page for BAUER MC duty-cycle cranes — dynamic compaction, dragline, grab and cutter/vibrator carrier work. Individual model specs live on each model page.
- Class
- Duty-cycle crawler crane family
- Members
- MC 76, MC 86, MC 96 (and variants)
- Primary duties
- Dynamic compaction, dragline, grab, cutter/vibrator carrier
BAUER
MC 96
130-tonne diesel duty-cycle crane with 570 kW Cat C18 power, 2 × 350 kN main winches and 45.4 m boom for specialist foundation engineering.
- Class
- Duty-cycle crane / base carrier
- Maximum lifting capacity
- 130 t
- Operating weight
- approx. 120 t
- Engine
- Caterpillar C18 diesel
BAUER
MC 96 Electric Drive
Electric-drive configuration of BAUER's 130-t MC 96 duty-cycle crane — first shown at Bauma 2019 with a trench cutter for low-emission urban special-foundation work.
- Drive
- Electric (mains-powered) — configuration-dependent
- Platform
- BAUER MC 96 duty-cycle crane (base carrier)
- Max. lifting capacity
- 130 t (platform)
- Boom length
- up to 45.4 m (platform)
BAUER
MC 86
110-tonne Stage V duty-cycle crane with 570 kW Cat C18 power for grab, dynamic compaction and heavy-attachment work.
- Class
- Duty-cycle crane
- Maximum lifting capacity
- 110 t
- Operating weight
- approx. 105 t
- Engine
- Caterpillar C18 diesel
BAUER
MC 76
90-tonne duty-cycle crane with 470 kW Cat C18 power and 2 × 300 kN main winches; a versatile base carrier for specialist foundation engineering.
- Class
- Duty-cycle crane / base carrier
- Maximum lifting capacity
- 90 t
- Operating weight
- approx. 99 t
- Engine
- Caterpillar C18 diesel
Parts, Service & Accessories
Safety accessories and drilling-tool service kits from BAUER Parts & Service.
BAUER
Cage Lifting Hook
Safety accessory for lifting reinforcement cages: auto-release function that reduces manual work at height.
- Class
- Jobsite accessory — cage lifting hook
- Function
- Reinforcement-cage lifting with auto-release
- Line
- BAUER Parts & Service
BAUER
Drilling Tool Toolbox
Service kit and jobsite toolbox from the BAUER drilling-tools and casings line, covering wear-part handling and tool maintenance around drilling rigs.
- Class
- Jobsite service kit / accessory
- Line
- BAUER Drilling Tools & Casings
- Function
- Wear-part handling and tool maintenance
Image Gallery
Product Catalogue
- EnquireRotary Drilling Rigs BG SeriesRange of Kelly rigs for bored piles and CFA.
- EnquireDiaphragm Wall Grabs DHGHydraulic grabs for standard diaphragm walls.
- EnquireTrench Cutters BC / MBCFor hard soils and rock in deep excavations.
- EnquireCutter Soil Mixing (CSM)Mixed-in-place walls and ground improvement.
Company Timeline
- 1790Sebastian Bauer acquires a coppersmith’s workshop in Schrobenhausen.
- 1952Dr. Karlheinz Bauer joins the company.
- 1958Injection anchor developed on a Munich project and patented.
- 1969BAUER begins equipment manufacturing with the UBW 01 anchor drilling rig.
- 1976The first BG 7 rotary drilling rig is manufactured in Schrobenhausen.
- 1984First BAUER trench cutter for walls up to 80 m depth.
- 1989BAUER exhibits at its own stand at bauma for the first time.
- 1994BAUER Aktiengesellschaft is founded as a holding company.
- 1998KLEMM Bohrtechnik is acquired.
- 2001BAUER Maschinen GmbH becomes an independent company.
- 2007BAUER Resources GmbH is founded; Group organised around three segments.
- 2011BAUER designs and deploys an underwater drilling rig near Scotland.
- 2013BAUER receives a bauma Innovation Award for its underwater drilling method.
- 2019BAUER cutter technology reaches a reported depth record of 251.4 m in Canada.
- 2021BAUER presents the eBG 33 all-electric drilling rig.
- 2025BAUER presents the eCSM prototype at bauma.
- 2026BAUER marks 50 years of rotary drilling rigs at its in-house exhibition.
Global Presence
Headquarters: Schrobenhausen, Germany
Subsidiaries and service partners across Europe, the Middle East, Asia and the Americas.
Related RENTEK Equipment
Foundation piling rigsDeep-drilling rigsCasing oscillators
Explore other manufacturers
